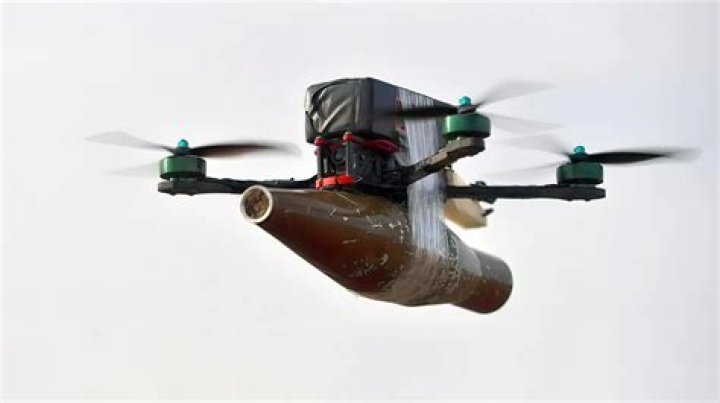

Can I use different ESC on quadcopter?

Can we use a different brand ESC in that quadcopter or multicopter? The answer is, it might work, but not recommended. If you are desperate to fly, then by all means, you can try mixing any combination of ESCs and props that have somewhat similar characteristics.

Can you mix and match ESC?

Electric Plane Talk > Can I mix and match ESC's and Motors? Yep!

How do I choose an ESC for my drone?

There is a number of factors that are considered while selecting the ESC and they are as, Current Rating. Input Voltage Rating. Weight and Size.
...
Mostly, three things can increase the current draw of your ESC,

1. High KV ratings of the motor.
2. Larger propellers (length & pitch)
3. Larger motor size (stator width & height)

How many ESC does a quadcopter need?

Individual and 4in1 ESC

As the title suggests there are 2 types of ESC's for quadcopters- single or individual ESC's and 4 in 1 ESC's. 4in1 ESC's are basically 4 individual ESC's soldered together stacked below a FC to save some complexity in wiring and a little bit of weight too.

How do I know what ESC to use?

The first thing to look at when choosing ESC is the current rating, which is measured in Amps, therefore sometimes referred to as “amp rating”. Amp rating is never too high, only too low.

Choosing ESCs for FPV

Will any ESC work with any motor?

Short answer is no. Not all brushless esc's are compatible with all brushless motors.

Can a drone fly without ESC?

The flight controller cannot communicate directly with motors without ESCs. The ESCs send current to the motor through three wires. The amount of current they send determines the motor's speed.

Why do ESC burn out?

Current too high. Battery voltage too high. Not enough cooling.

Do you need an ESC for each motor?

Brushed and brushless motors both require escs, but an esc is specific to brushed or brushless. IE, you have to buy the right type. There can be a few factors in choosing the correct esc, but the biggest factor is getting a current rating somewhat larger than the motor will draw.

How big ESC do I need?

If you are using 30amps ESCs, you should choose motors that are bigger than 2205 or faster than 2300kv, and propellers should be bigger than 5 inches. For examples 30 amps is required for the 2204 2700kv, 2204 3200kv, 2205 2700kv or 2206 1900kv(with 6 inch propellers).

What is the best ESC?

Top 5 ESCs for FPV quadcopters

• Wraith32 – BLHeli_32.
• RacerStar 30A BLHeli_S(best for budget builds)
• Sunrise Cicada 30A BLHeli_S.
• KISS 24A.
• RacerStar 30A 4-in-1 BLHeli_S.

What is a 4 in 1 ESC?

A 4 in 1 brushless ESC allows you to move ESCs from the arms of your quadcopter into the centre stack with your flight controller. Compact builds can benefit, as they make wiring a lot simpler, removing the need for a power distribution board and separate BEC in some cases.

Can you mix ESC for drone?

Can we use a different brand ESC in that quadcopter or multicopter? The answer is, it might work, but not recommended. If you are desperate to fly, then by all means, you can try mixing any combination of ESCs and props that have somewhat similar characteristics.

Can you use a Brushless ESC with a brushed motor?

Yes there are quite a few brushless esc's that can be set up to run in brushed mode.

How do you know your ESC is bad?

There are 3 phases in an ESC, each motor pad corresponds to a phase. If one of those phases is damaged, your motor will stutter (won't spin up full speed but rather it just twitches). Usually it has to do with bad MOSFET – the 8-pin surface mount chips on the board.

Can an ESC burn up a motor?

YES. A Bad ESC can burn a motor and a Bad motor can damage an ESC and cause it to burn. For first power up and ANY Bench testing, setup, programming, Calibraing, etc ALWAYS use a Current Limiter to prevent escs and motors from burning.

How much rpm motor is required for drone?

Typical rotational speeds for the propellers of small multirotor drones are between 4000 and 6000 rpm, and they are typically near 5000 rpm in flight [40] .

What motors do Quadcopters use?

For beginners there are 2 types of motors used in drones: brushed and brushless motors. They vary in the way they work. The brushless is way more powerful for their weight than brushed motors, and they last way longer. For bigger quads: no question, brushless is king.

Why are only Bldc used in drone?

Abstract: Quad copter drone usually uses Brushless Direct Current (BLDC) motor as rotor due to high efficiency and small volume. The BLDC motor speed control is very important for drone position and velocity determent.

Can a 60 amp ESC handle 3S?

A quality 60A ESC will be fine on 3S...within reason, and as stated above with weight/motor kv concerns.

Can you burn out a brushless motor?

There is in a sense no break in for brushless motors, if the poly coat insulation on the winding is going to fail it will practically right away.

Do I need a new ESC for a brushless motor?

Yes, you need a brushless ESC for a brushless motor. You need an esc that can handle the current that the motor pulls. Just the fact that it says its rated to 14 amps means that it will work up to 14 amps.
