How do you calculate transformers?

Since you know kVA = V * l / 1,000, we can solve for V to get V = kVA * 1,000 / l. So you'll multiply your kVA rating by 1,000 and then divide by the amperage. If your transformer has a kVA rating of 75 and your amperage is 312.5, you'll plug those numbers into the equation — 75 * 1,000 / 312.5 = 240 volts.

How do you calculate Vs in a transformer?

To determine the required transformer VA, multiply the secondary voltage by the required amperes: For example, VA=Volts x Amperes or 28V x 1.2 amperes = 33.6 VA.

How do you calculate kVA rating of transformer?

Use the formula: P(KVA) = (V^2/R)/1000 where R is resistance in ohms. For example, if V is 120 volts and R is 50 ohms, P(KVA) = V^2/R/1000 = (14400/50)/1000 = 288/1000 = 0.288 KVA. Calculate power rating in KVA when you know power in watts and the power factor.

How do you calculate the voltage of a transformer?

Solve the equation Vs/Vp = Ns/Np where Vs is the secondary voltage, Vp is the primary voltage, Ns is the number of secondary windings and Np is the number of primary windings. Divide the number of secondary windings by the number of primary windings, and multiply the source voltage by this ratio.

How do you determine transformer size?

Transformer size is determined by the kVA of the load. Load voltage, or secondary voltage, is the voltage needed to operate the load. Line voltage, or primary voltage, is the voltage from the source. Single-Phase has two lines of AC power.

Transformers Physics Problems - Voltage, Current & Power Calculations - Electromagnetic Induction

What does kVA mean on a transformer?

A kVA is 1,000 volt-amps. It's what you get when you multiply the voltage (the force that moves electrons around a circuit) by the amps (electrical current). Kilovolt-amps measure what's called the 'apparent power' of a generator. This is different from kilowatts (kW), which measure the 'true power'.

How do you calculate kVA for a 3 phase transformer?

Using the aforementioned formula, let's confirm this rating:

1. Primary Voltages or High Voltages (H.V) is 11000 volts.
2. Primary Current (current on High Voltage side) is 5.25 amps.
3. KVA = (√3. V x I) /1000= (1.732 × 11000 × 5.25)/1000=100 KVA.

How do you calculate 3 phase current of a transformer?

Three Phase Example: Using a 75 KVA Three Phase Transformer as a starting point. 75 KVA is equal to 75,000 VA. (K= 1,000) The full value in VA, 75,000 divided by 1.732 = 43,302, which is then divided by the Voltage 208V = 208.2 Amperes. This is a "Three Step Division", technique: VA / 1.732 / Voltage = Amperage.

How do you calculate the maximum load of a transformer?

Transformer full load current = kVA / (1.732 x Volt)

1. Transformer full load current = kVA / (1.732 x Volt)
2. Transformer full load current = 1000 / (1.73 2× 480) = 1203 Amp.
3. Short circuit current at TC secondary (Isc) = Transformer full load current / Impedance.

What is the formula of kVA to kW?

Real Power = 1 kVA × 0.8 = 0.8 kW

In such a circuit, 1 kVA is equal to 0.8 kW.

How do you convert kW to kVA?

The kVA to kW / kW to kVA Formulas

1. Glass capacity = Apparent power (kVA)
2. Froth = Reactive power.
3. Coffee = Actual power (kW)
4. Power factor = Coffee (kW) / Glass capacity (kVA)

How many houses can a 25 kVA transformer handle?

Vendor & Senior Tinkerer. The 25 kVA transformer probably can handle much higher than 25 kVA for short periods (several hours) without issue. 7 houses seems like a stretch, but it'd probably be fine unless they all started charging EVs or something similar.

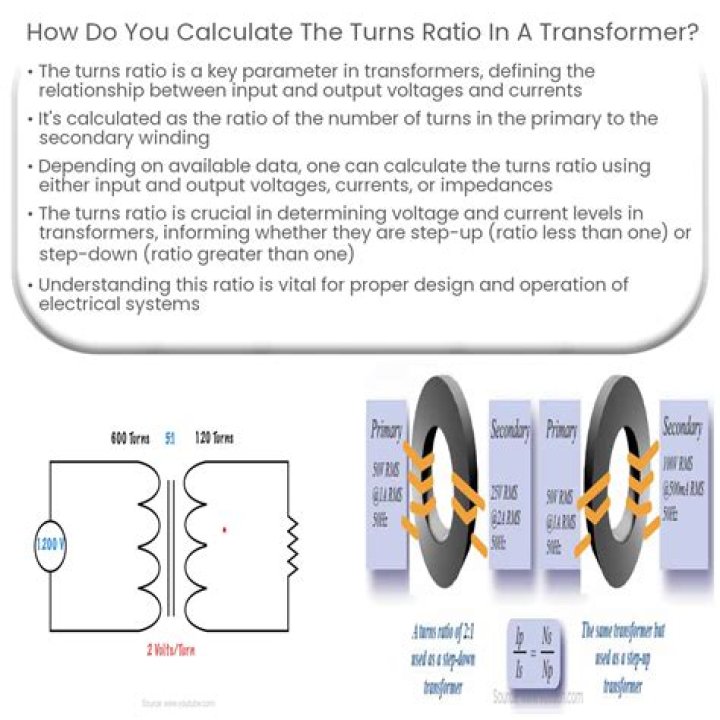

What is the ratio of transformer?

The turns ratio of a transformer describes the number of wire turns on the input versus the number of turns on the output. A 1:1 transformer would have the same number of turns on each coil while a 1:2 transformer would have twice as many on the secondary.

How many amps can a 50 kVA transformer handle?

Amperage provided for a given KVA can be determined by similar techniques: Single Phase Example: Using a 50 KVA Single Phase Transformer as a starting point. 50KVA is equal to 50,000 VA. (K= 1,000) The full value in VA, 50,000 is then divided by the Voltage 240V = 208 Amperes.

How many amps can a 100 kVA transformer handle?

Another example is how many amps does a 100 kVA generator produce? A 100 kVA generator produces 833.33 amps at 120V voltage. With this, you have all you need to convert kVA to amperes.

What is the formula for kW?

The conversion of watts to kilowatts is just as straight-forward as you may have guessed. We find the power in kilowatts P(kW) by dividing the power in watts P(W) by 1,000. Here's the Formula for Converting Watts Into Kilowatts: P(kW) = P(W) / 1,000.

How many amps is 1kva?

One kVA is equivalent to 1,000-volt amps. The electrical efficiency is typically expressed as a power factor between zero and one.

What is meant by 25 kVA transformer?

kVA stands for Kilovolt-Ampere and is the rating normally used to rate a transformer. The size of a transformer is determined by the kVA of the load. In many circumstances the power required by the load is equivalent to the rating of the transformer expressed in either VA or kVA.

What is difference between kVA and kW?

kW is the amount of 'actual power' an electrical system has. This shows you how much power is being converted into useful, working output. kVA, on the other hand is the measure of 'apparent' power. If kW is how much power you can work with, kVA tells you how much is being used in the system overall.

How many kVA does a transformer have?

A KVA is simply 1,000 volt amps. A volt is electrical pressure. An amp is electrical current. A term called apparent power (the absolute value of complex power, S) is equal to the product of the volts and amps.
