How thick should a mortar joint be?

Mortar joints are typically 3/8", but can vary from 1/4" to 1/2" — we cover this more in our brick sizes article. Bed joints are the horizontal mortar joints, or the bed of mortar that the next brick sits on.

How thick can mortar joint be?

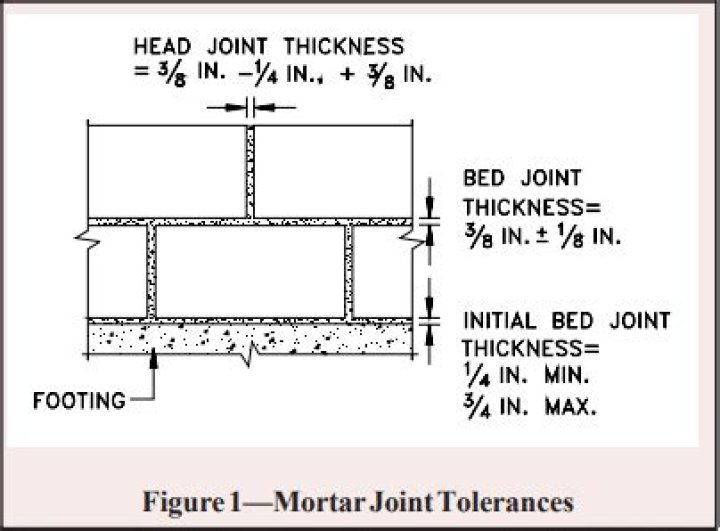

Mortar joint thickness for load-bearing masonry shall be within the following tolerances from the specified dimensions: Bed joint: + ¹/₈ inch (3 mm). Head joint: - ¹/₄ inch (7 mm), + ³/₈ inch (10 mm). Collar joints: - ¹/₄ inch (7 mm), + ³/₈ inch (10 mm).

What size should a mortar joint be?

The most common mortar joint size is 3/8 of an inch, or . 38 inch, as specified by the International Building Codes TMS 602, on the “Specifications for Masonry Structures.” Mortar joints that measure 1/2 inch are also common.

How thick should mortar be between blocks?

The mortar joints used in concrete block and brick construction are usually 10 mm thick. For AAC block construction, a special type of mortar is used (2-3 mm) and this is a pre-mixed cement-based product with higher quality than normal mortar.

How thick should mortar be?

Most tile installations require a 3/16-inch layer of mortar beneath the tile. A mortar layer 3/16 an inch thick is accomplished by spreading mortar with a 3/8-inch by 3/8-inch square-notched trowel. This thickness is ideal for most tile installations. However, sometimes a thicker layer of mortar is required.

Bricklaying Tips - Mixing Mortar

Can you use too much mortar?

In addition to producing an uneven surface, applying too much thinset can create costly cleanup headaches and add unnecessary time to a project. Simple installation rules eliminate the possibility of this potential problem.

How thick should mortar be for laying slabs?

The depth of the mortar bed should be approximately 35-40mm deep. Ideally starting from a right angle or straight edge, place the slab down. Gently tap with a rubber mallet or press down with your hands and use a spirit level to ensure to make sure the slab is level and in line with your proposed design.

How thin can mortar be applied?

The terms thinset cement, thinset mortar, dryset mortar, and drybond mortar are synonymous. This type of cement is designed to adhere well in a thin layer - typically not greater than 3/16th thick.

What should be the thickness of mortar in brick masonry?

The thickness of clay/earth mortar is 12 mm and the maximum height of building constructed with clay is restricted to 2.5 m. stones and cement blocks are also used in brick work.

What should the gap be between bricks?

The bricks should be laid around 10mm apart to allow space for your mortar. This will determine the number of bricks per course.

What happens if mortar joint is too thin?

In my experience, narrow head joints result in more leakage problems than do wide joints. This is because narrow joints often aren't filled completely and are difficult to tool properly. Wide joints generally shrink more, but this usually isn't a problem unless the joints are very wide.

How strong is a mortar joint?

As for mortars type N and S, the average strength value was equal to 0.24 MPa for the two types of mortar, with standard deviation of 0.03 MPa and 0.01 MPa respectively, and coefficient of variation of 11.4% and 3.18% respectively.

How thick should brick grout be?

4. Minimum thickness of mortar or grout between brick and reinforcement: 1/4 in. (6.4 mm), except: a. 1/4 - in.

How thick should a mortar joint be on block wall?

Mortar joints

All finished joints should be 8–10mm thick.

How big should a mortar joint be on a block wall?

The mortar should be workable but firm enough to support the weight of the block. Butter the inside end of the first block and then press the block into the mortar bed to create a 3/8 inch mortar joint.

Is mortar as strong as concrete?

Basically concrete is stronger and more durable so it can be used for structural projects such as setting posts whereas mortar is used as a bonding agent for bricks, stones, etc.

What is the thickness of mortar between the two layers?

The thickness of cement-sand mortar between layers of bricks should not be more than 0.5-inch.

What is the size of the mortar filled between the bricks in brick work?

Bricks are bonded each other using 1:6 Cement Masonry. We generally adopt 10-16mm of thickness between each layer of Bricks.

What is the nominal thickness for masonry bed joints?

The thickness of the mortar joint is part of the modular system of blockwork. There are some patent mortarless systems available overseas. The nominal bedding joint thickness for concrete masonry is 10 mm.

How thick should a mortar shower pan be?

As a general rule, a shower curb foundation is 3 to 4 inches thick and 4 to 6 inches tall, with finish material adding to these dimensions. Exact specifics depend on personal preferences and materials used; there is no right or wrong size.

How thick is a thin-set mortar bed?

While thin-set mortars have been popular and effective for standard tile and stone installations for many years now, a thin-set mortar bed is just 3/32" to 3/16" thick and as we get beyond the 12" x 12" format, sub-floors need to be absolutely flat for standard thin-set mortars to be used on these large tiles.

How thick should cement be for patio?

Four inches is the minimum thickness for a concrete patio. You'll want to make it six to eight inches thick if the patio will support a structure such as a gazebo or hot tub.

What is the best mortar mix for laying slabs?

The best mix for pointing patios is ideal at a ratio of 1:4 – one part concrete and four parts sharp sand. In some cases, you can use 1:3, but that's only really going to help when you're pointing. Trust us – this ratio's been used for decades.

Is it best to lay slabs on sand or cement?

We'd always, always recommend bedding slabs down. Whilst you may get away with it in some instances, the vast majority of slabs won't stay put when laid straight onto sand. We'd recommend bedding the slabs down with a simple mortar mix each and every time.
