What are slotted holes and where they are used?

Oversized and/or slotted holes are used when you either want to eliminate bearing as an option or do not want the connection to transfer force in one direction. They may also be used when construction tolerances may be an issue.

Where are slotted holes used?

Introduction. Slotted holes are used in bolted connections of steel structures to compensate for tolerances during the erection, to allow one type of endplate for more connected members and to enable a slip in joint. Pre-loading of the bolts may prevent deformation of the connection in the direction of the slot.

What are slotted holes?

Slotted holes are basic geometric shapes consisting of two arcs connected by straight lines. Slotted holes are one possible manufacturing form for drilling patterns.

Why use long slotted holes?

Long slotted holes may be used in one of the connected parts at any individual faying surface without regard for the direction of applied load on connections in which the allowable slip resistance is greater than the applied force.

What is oversized hole?

A borehole the diameter of which is excessive because of the whipping action or eccentric rotation of the drill string and bit.

1063. Makita Belt Sander Stand - ALUMINUM BRACKETS SLOT CUTTING - 26 of 41

How are slotted holes measured?

A slot is designated in the format of width × length with both dimensions being the out-to-out measurements to the edges of the slot. A short slot for a ¾” diameter bolt is designated as 13/16 × 1, and the out-to-out dimension of the slot length to the edges of the hole is 1”.

What is the meaning of a bolt hole?

Definition of bolt-hole

chiefly British. : a place of escape or refuge.

What are slip critical bolts?

Slip-critical joint, from structural engineering, is a type of bolted structural steel connection which relies on friction between the two connected elements rather than bolt shear or bolt bearing to join two structural elements.

How much bigger should a hole be than a bolt?

Select a drill bit 1/32 inch larger than the bolt diameter for a tight fit hole or a drill bit 1/16 inch greater than the bolt diameter for a loose fitting hole.

What are the minimum standard hole distance to an edge of a connected part?

Minimum edge distance (distance between centre of the bolt hole to the plate edge) shall not be less than 1.25 times the nominal bolt diameter.

How do you make a slotted screw hole?

A:

1. Drill a clearance hole in the bottom. For a 1/2-in. -thick back, the hole should be less than 1/2 in. ...
2. Cut the slot and chamfer it with a chisel. Extend layout lines from the edges of the hole. ...
3. Slide in the bottom, and insert the screw. But not too tightly.

How do you cut a slot in metal plate?

1. Place a piece of plywood on a table or the floor. ...
2. Clamp the sheet metal to the plywood. ...
3. Mark the shape and size of the slot you want to cut in the sheet metal using the marker.
4. Drill a hole over the marked area on the sheet metal. ...
5. File down the hole to remove any sharp edges.

Is a slot a hole?

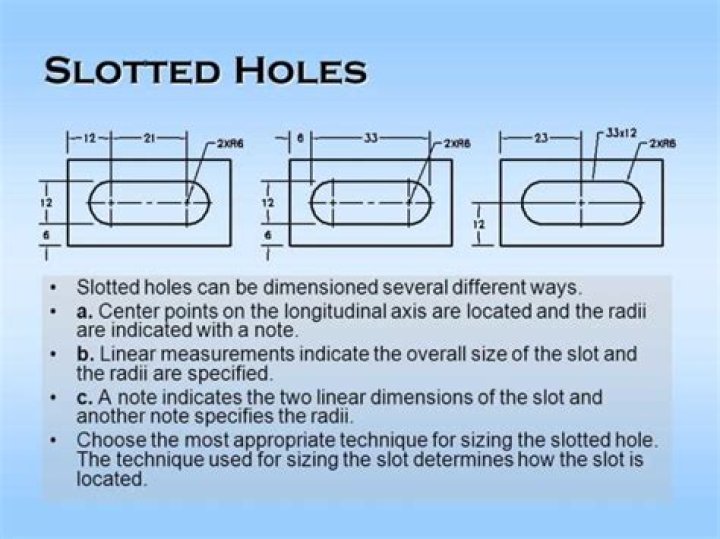

Slot: an elongated hole. It is stretched in one direction but still has full radii on the ends.

How do you measure a bolt hole?

To measure the diameter of screws and bolts, you measure the distance from the outer thread on one side to the outer thread on the other side. This is called the major diameter and will usually be the proper size of the bolt.

What size bolt fits in a 1/2 hole?

For example, a 1/2″ bolt can fit in a 1/2″ hole. That means the hole does not have to be bigger than the bolt. However, if you're fastening it with a washer and nut, you do have the option to make a slightly bigger hole for certain awkward installations.

What is the difference between a bolt and a screw?

A bolt is a non-tapered fastener that uses a washer and nut to hold objects together. A screw is a tapered fastener that mates with an existing thread or creates its own thread in a material as it turns.

What is clearance hole?

clearance hole (plural clearance holes) A hole through an object which is large enough to enable threads of a screw or bolt to pass through but not the head of the screw or bolt.

Do you use the same size drill bit as the bolt?

A common question we get when discussing carriage bolts is “What size drill bit do I use to drill a hole for a carriage bolt?” The answer is simple. Use the same size drill bit as the diameter of the bolt. If you are using a 1/2″ diameter bolt use a 1/2″ drill bit.

Why is preload important?

Preload is an essential concept in larger mechanical and high-performance instruments such as Telescopes. It helps raise the natural frequency of a system, safeguarding it against external disruptions. It helps you avoid buckling in case of changes in the stress caused by shifts in the position.

What does SC on a bolt mean?

“SC” signifies a slip-critical connection where the bolts are not being used in shear, but instead, the tension from the connection resists the shearing force. You simply require the same standard A325 heavy hex structural bolt but will be using them in three different connection types.

What is shear connection?

A shear connection is a joint that allows the transfer of shear forces between two members. It is a connection with pure normal force load (tension joint), pure shear loading, or combination of normal and shear force. Shear connections are generally the most commonly used connections.

What are bolt holes called?

It would be two words, like "screw hole" or "pilot hole".

Why is it called a bolt-hole?

a hole in the ground, protected opening in bushes, etc., into which an animal can flee when pursued or frightened. a place or avenue of escape or refuge: The remote mountain village was a safe bolt-hole for refugees during the war.

What is threaded hole?

Threaded holes are integral aspects of mechanically fastened parts. They are easy to add with CNC machines. Threads are usually added last after most other aspects of the part have been machined. Getting it wrong and being forced to scrap a part can be a very costly mistake.
