What causes high hydraulic pressure?

This could be anything from a cylinder that is leaking high-pressure fluid past its piston seal, to an incorrectly adjusted relief valve. Identify and change-out any heat-generating components. Air generates heat when compressed. This means that aeration increases the heat load on the hydraulic system.

What happens if hydraulic pressure is too high?

If the pressure is found to be too high, the system will use excessive input energy and the fluid may overheat. In addition, excessive pressure may stress components and create a very real danger to humans.

What causes pressure in hydraulic system?

In a hydraulic system, pressure is usually created by restricting the flow of the fluid, or by gravity.

What increases hydraulic pressure?

Hydraulic pressure intensifiers, sometimes referred to as hydraulic pressure boosters, generate a higher pressure from a low-pressure hydraulic power source. They always work powered by a pump, which is operating at a set pressure and from this the intensifier simply generates a higher output pressure.

What controls pressure in hydraulic system?

Pressure-control valves are found in virtually every hydraulic system, and they assist in a variety of functions, from keeping system pressures safely below a desired upper limit to maintaining a set pressure in part of a circuit. Types include relief, reducing, sequence, counterbalance, and unloading.

Pressure and Flow in a Hydraulic System and Their Basic Relationship

On which factors does hydraulic pressure depend?

It depends on mass of the object, acceleration of object, and area upon which force is acting.

Which component is used for increasing pressure in hydraulic system?

One of the valves found in hydraulic systems is a pressure relief valve. The pressure relief valve is in place to stop the hydraulic pump from increasing the pressure of the system beyond the maximum level. There are many other valves in these systems, including direction control valves.

What are three 3 common problems associated with hydraulic systems?

Common Causes of Hydraulic Failure

1. Air and Water Contamination. Air and water contamination are the leading causes of hydraulic failure, accounting for 80 to 90% of hydraulic failures. ...
2. Temperature Problems. ...
3. Fluid Levels and Quality. ...
4. Human Error.

How do I know if my hydraulic accumulator is bad?

Noise: The occurrence of noise in the hydraulic system indicates a malfunction in the system. The noises occur due to aeration or cavitation. The cavitation or rotation is the result of the contamination in the hydraulic fluid.

How do I know if my hydraulic valve is bad?

3 Signs Of Pressure Relief Valve Failure

1. System Cannot Reach Pressure. If your system isn't reaching pressure, this could be a sign of pressure relief valve failure. ...
2. System is Over Maximum Pressure. ...
3. Pressure Relief Valve is Leaking or Has No Pressure.

Can hydraulic pressure be adjusted?

Adjust the relief valve by turning the adjuster clockwise until the reading on the gauge builds to the pressure called for on the machine drawings. This is what is known as the valve “cracking” pressure, which is the pressure at which the relief valve starts to open.

What are the common faults in hydraulic system?

The most common causes of poor hydraulic performance are particulate contamination, water contamination, clogged filters, high fluid temperature and incorrect hydraulic fluids.

What is the maximum hydraulic pressure?

The accepted international standard for maximum working pressure in the high pressure hydraulic tools industry is 700 Bar (10,000 PSI) and the majority of the products offered by Hi-Force are in line with this standard.

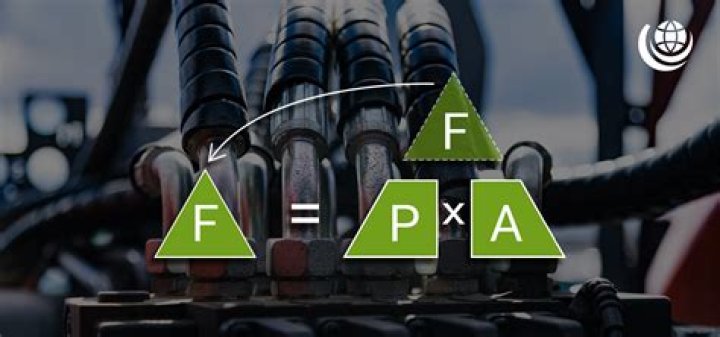

What are the two factors on which pressure depends?

Hence pressure depends on surface and force applied.

What are the three factors that affect the liquid pressure?

The depth of that point from the surface. The density of the liquid. Acceleration due to gravity.

Does flow control valve affect pressure?

Flow Control Valves react to an increase of the parameters they control by throttling closed. This is a "progressive" process = increase in demand results in the valve reducing the flow progressively. The more the valve closes, the more the downstream pressure is reduced.

How do you adjust a hydraulic flow valve?

To adjust the spool valve, loosen the valve-locking nut on the side. Removing the locking nut gives you access to the adjustment screw. Turn the screw clockwise to raise the pressure, and twist it counter-clockwise to lower the pressure.

Does increasing flow increase pressure?

Bernoulli's Principle states that as the speed of a moving fluid increases, the pressure within the fluid decreases. The Bernoulli's Principle explains the behavior of an ideal fluid passing through a pipe or enclosed passageway such a pump.
