What causes hot tears in casting?

A hot tear is a discontinuity that occurs during the solidification stage of a casting operation, when the material being cast is part solid and part liquid. A hot tear can occur because as a material solidifies, it will generally want to contract.

How do I stop casting hot tears?

It is a well known practical observation that hot tearing can be reduced or eliminated in controlled casting conditions that prevent formation of large temperature and stress gradients. In line with that, preheating permanent molds to a high enough temperature is done to alleviate or eliminate hot tearing.

What is hot tears defect?

A hot tear is a defect that occurs during solidification of the casting. Hot tears are internal or external ragged discontinuities or crack on the casting surface, caused by rapid contraction occurring immediately after the metal solidified.

What is hot crack in casting?

Hot crack is a kind of crack which is caused by the blocked solid shrinkage of the casting when the strength and plasticity of the casting are very low at the end of solidification or shortly after solidification.

What type of alloy is most prone to hot tearing?

It can be seen that increasing the Al₆(Mn, Fe) eutectics from 0.22 to 0.3 pct for alloys A2 and A3, respectively, has reduced the hot tearing tendency. However, the highest hot tearing tendency was obtained for alloy D1 with the highest amount of eutectic (0.41 pct).

What Causes Hot Tears In Castings?

Which of the following is the most likely cause of hot cracking?

Thus, the principal causes of cracking are: Strain on the weld pool is too high. Liquid cannot reach the regions where it is needed due to inadequate supply or blockage/ narrow channels between solidifying grains.

What is hot cracking and how it occurs?

A Hot Cracking. Hot cracking occurs due to the embrittlement of the weld metal or the partially melted zone (PMZ) during cooling between the liquidus and solidus temperatures or just below the solidus (Fig. 26). Hot cracks are characterized by their intergranular or interdendritic nature.

How do you avoid porosity in casting?

Gas porosity, which is the formation of air bubbles inside of a casting as it cools, can be avoided by melting the material in a vacuum or in an environment of low-solubility gases, including argon. This porosity occurs because liquids can naturally hold in dissolved gas.

What is the use of chills in casting?

A chill is an object used to promote solidification in a specific portion of a metal casting mold. Normally the metal in the mould cools at a certain rate relative to thickness of the casting.

What is cold shut in casting?

Cold shuts occur when two relatively cold streams of molten metal from different gates meet and do not fuse together properly during the casting process. This problem is visible to the naked eye – giving the appearance of a crack separating the two sections.

What are Chaplets in casting?

Chaplet A small metal insert or spacer used in molds to provide core support during the casting process. Charge A given weight of metal introduced into the furnace. Chill A metal insert in the sand mold used to produce local chilling and equalize rate of solidification throughout the casting.

What does sprue mean in casting?

A sprue is a large diameter channel through which the material enters the mould. A runner is a smaller diameter channel that directs the molten metal is directed towards the individual part (particularly common when casting multiple parts at once).

What reduces the solidification time of casting?

Increase in mould thickness always decreases the rate of solidification of casting material.

How can porosity be reduced?

Thinner walls tend to have less porosity, while thicker walls usually will have more shrink porosity. Ensuring your part is designed with uniform walls can help the metal flow to fill in more of the part and better prevent porosity than if you have a mix of thin and thick walls.

How much porosity is acceptable in casting?

Pits not larger than 1.25mm ( 0.05") in any direction are acceptable. Exposed chain porosity must not exceed 3mm (1/8 ") in length. Unless otherwise specified, exposed porosity on machined diecast parts will conform to this level.

How do I stop casting Misrun?

Prevention of run out and incomplete castings

To prevent this casting defect, design the casting mold with precision. Inspect and replace any defective molds before casting. High temperatures can lead to excess wear and tear of the mold. Use quality raw materials for your mold that can resist high temperatures.

What is the difference between hot cracking and cold cracking?

Hot cracks develop during solidification of weld metal at elevated temperatures and propagate between the grains of a material. Cold cracks or delayed cracks develop after solidification of the weld, as a result of residual stresses, and propagate both between grains and through grains.

What is hot short cracking?

Hot shortness is a type of welding defecting characterized by the cracking of a material along its grain boundaries as the welded area cools and solidifies.

Which is worse hot cracking or cold cracking?

Cold cracking is much worse than hot cracking simply because it may be hours or days before the crack appears. This means the welded assembly may already be out the door and in service. Cold cracking is characterized by a crack starting on the base material and not on the weld as is the case with hot cracking.

What causes lamellar tearing?

Lamellar Tear is caused by Tensile Stress in Through-Thickness direction. This comes from the shrinkage of the weld and the base metal itself has impurities or inclusions that are parallel to the work surface Thus causing a tear or crack Lamellar Tearing up.

How do you avoid cracking or crack in welding?

Use a preheat on heavier sections of base materials or where there is a large heat-sink to slow the cooling rate, reducing weld shrinkage stress and preventing cracking.

What causes a weld to crack down the middle?

When the weld puddle cools and solidifies, not enough weld metal is in the throat of the weld to absorb this shrinkage and the bead cracks down the middle. Both of these failures are known as a hot crack. The third most common reason for centerline cracking is an insufficient amount of preheat for the joint.

What is Chvorinov's rule in casting?

Chvorinov's rule suggests that sections of the casting having a large volume-to-surface area ratio will take a long time to solidify. Such hot spots should be avoided when designing castings because they are potential sites of porosity defects.

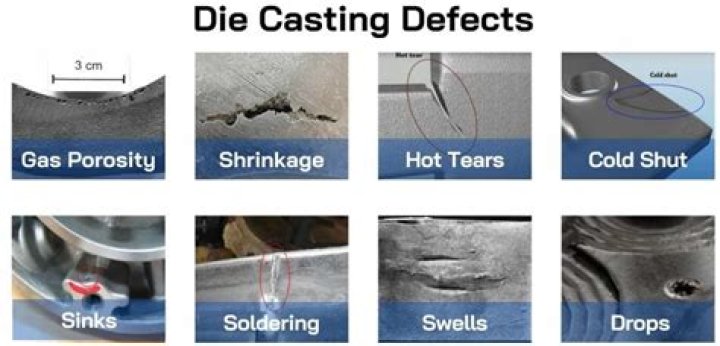

What are the common defects of casting?

They are broken down into five main categories: gas porosity, shrinkage defects, mould material defects, pouring metal defects, and metallurgical defects.

Which among the following factor affects the pouring time of the casting?

Concept: Pouring time depends on casting materials, complexity of casting, section thickness and casting size.
