What information does AIS transmit?

Conclusion. AIS is very reliable as it transmits the GPS location including SOG and COG. AIS also transmits a boats' specific MMSI number and the vessels name allowing personal contact by Digital Selective Calling (DSC), avoiding vague descriptions (e.g. “ship off my port bow”).

What kind of information is AIS transmitted?

AIS transmits, automatically and at set intervals, dynamic information relating to the ship's course, speed and heading; static information related to the ship's name, length, breadth; and voyage-related details such as cargo information and navigational status (e.g. underway or at anchor).

What are the 3 types of AIS information transmitted by vessel?

Types of AIS equipment.

For a shipboard fitting there are three types of AIS equipment, Class A, Class B and receive only. Class A is intended for vessels where the fit is mandatory. Class A transmits more information, more frequently and at higher power than Class B.

What is not included on data transmitted by AIS?

Class B transponders, compared to Class A transponders, send less data (not included are IMO number, Draught, Destination, ETA, Rate of Turn, Navigational Status) and the transmitting intervals are rarer.

What information is transmitted by an AIS as dynamic data and static data on a vessel making way?

AIS is simple in concept, using the VHF radio to transmit and receive dynamic data - which is taken from the global navigation system (for example GPS or Glonass) giving the vessels course, speed and position; and static data - (for example the vessel's MMSI number), which is inputted at installation.

How AIS Works - Operation of AIS

How do I get data from AIS?

To receive all AIS transmissions a receiver must monitor both channels simultaneously, so the receiver must in effect be two receivers in one box. If two separate and different transmissions arrive at the receiver at the same time but on different channels both transmissions will be received and output by the receiver.

What frequency does AIS transmit on?

AIS transponders and receivers use two VHF radio frequencies: 161.975 MHz (AIS1, or channel 87B) and 162.025 MHz (AIS2, or channel 88B). The USCG has asked the Federal Communications Commission to authorize any US vessel to operate AIS on these two channels under its existing ship station license.

What data does AIS provide for Class B?

All our Class B AIS transponders can output both AIS and GPS data through the NMEA and serial ports. It may be possible to use the GPS data for one of your other systems (e.g. DSC VHF radio), eliminating the need for other GPS systems.

Is AIS data public?

There are many AIS data providers which can provide real-time and historical terrestrial or satellite AIS data. However, the AIS data quality differs between the providers. There are private, public, commercial or free data providers.

What is difference between Class A and B AIS?

Class A AIS transponders are required to have a DSC (156.525 MHz) receiver, external GPS, heading, and rate of turn indicator, and can also transmit and receive safety-related text messages. Class B AIS transponders operate using Carrier-Sense TDMA (CSTDMA) broadcast mode and transmit at a power level of 2 watts.

How do I know if my AIS is transmitting?

If you get green across the board then the unit itself is transmitting. Note if you don't get a check for TX position reports then check to see you have a valid GPS signal. The unit will not transmit unless it has a valid GPS position.

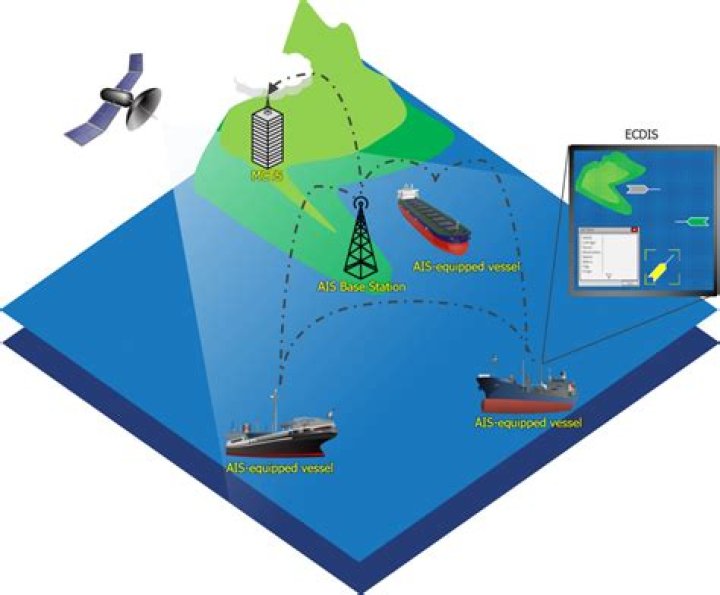

How do AIS work?

AIS works via a combination of GPS, VHF radio, and an AIS transponder. The transponder broadcasts a ship's information, such as speed and heading (information gathered by GPS, of course), the ship's name, port of origin, size and draft, and more, over VHF frequencies 161.975 megahertz and 162.025 MHz.

Can I connect my GPS to the AIS?

Our very popular AMEC CAMINO-101 Class B AIS transponder can now either use its internal GPS system coupled with the AMEC external antenna or it now supports using an external GPS device connected through the inbound NMEA port.

How does MarineTraffic get its data?

Data is gathered from in excess of 18,000 AIS equipped volunteer contributors in over 140 countries around the world. Information provided by AIS equipment, such as unique identification, position, course, and speed is then transferred to the main Marine Traffic servers for display via the website in real time.

Can satellites track ships?

The satellites aim to monitor maritime traffic, by using orbiting sensors to track vessels that turn off their AIS.

Do I need AIS transmit?

Commercial vessels weighing more than 300 gross tons or over 65 feet, certain passenger vessels, commercial vessels, and ships carrying hazardous cargo are required by U.S. and international law to have AIS.

How do you connect an AIS to a chartplotter?

Connecting an AIS device to a GPSMAP 3000 series chartplotter over NMEA 0183

1. Connect the Blue (Data Out) wire of the GPSMAP 3000 series device to the NMEA In (or Data In) wire of the AIS device. ...
2. Connect the Brown (Data In) wire of the GPSMAP 3000 series device to the NMEA Out (or Data Out) wire of the AIS device.

Do I need GPS for VHF radio?

Enabling Your VHF Radio's Safety Features. The Standard Horizon GX2200 combines a VHF radio with a GPS receiver so you don't need to connect with an external GPS sensor or chartplotter.

How do you send a message to another ship in AIS?

Send AIS messages

Select Message: Use this dropdown box to select any existing message. Message Name: This field shows the name of the message when you select it. Message Type: Select the type of AIS message from this dropdown box. You could choose the Broadcast Safety message or the Addressed Safety message.

What is the accuracy of the AIS information?

AIS presented in all meeting situations mean value of the opposite ship's true speed with the satisfactory accuracy (with doubled value of the standard deviation less than 0.5 knots or 1% of the speed).

What AIS information is entered manually and sent every six minutes?

Voyage-related data:

This information is entered manually sent every six minutes.

What is an AIS number?

The AIS number is the unique six-digit number assigned to each inmate incarcerated by the ADOC and represents the quickest way to find a particular inmate.

Why is my boat not showing on AIS?

Possible reasons for a vessel's position not picked up and displayed on the Live Map are: The vessel is not equipped with an AIS transponder or the transponder is not operational or the transponder is not properly working.

Why do ships turn off AIS?

A ship's crew may turn off its AIS broadcast for a variety of legitimate reasons, but this behavior may indicate that a vessel is hiding its location and identity to conceal illegal activities like fishing in no-take protected areas or entering another country's waters without authorization.

What is the difference between AIS transponder and transceiver?

An AIS transceiver uses VHF radio and GPS technology to communicate with other nearby ships. An AIS transponder determines its own position, speed and course using a built in GPS receiver.
