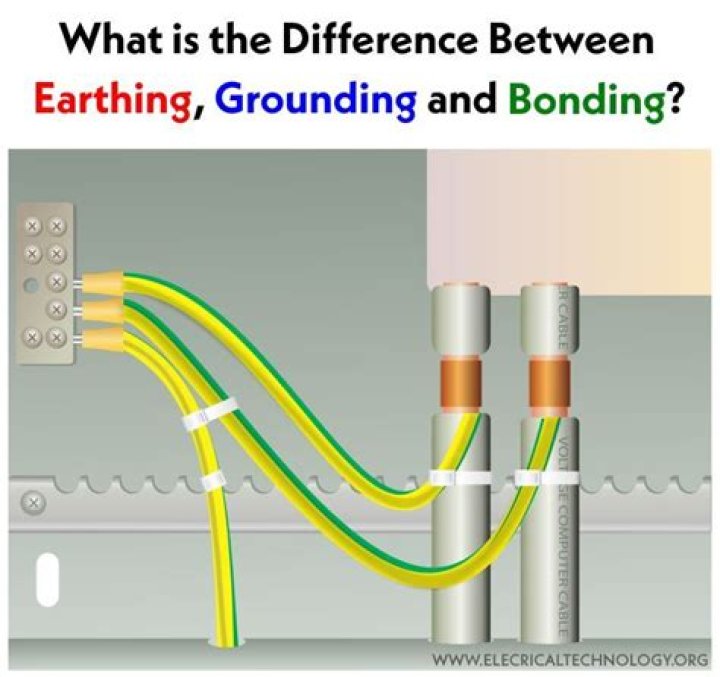

What is the difference between earthing grounding and bonding?

Bonding is the connection of non-current-carrying conductive elements like enclosures and structures. Grounding is the attachment of bonded systems to the earth. Both are necessary to safeguard people and property from electric hazards.

Is earthing and bonding the same?

Earthing is not bonding, and bonding is not earthing, they are different concepts. Earthing is provided to connect exposed-conductive-parts to the main earthing terminal, to provide a path to earth for fault current in the event of a fault.

What is earthing and bonding?

Earthing - A way of preventing electric shocks. Electrical installation - a fixed wiring system. Live - Active (there is electricity). Main bonding - Green and yellow conductors that connect metal pipes (gas, water or oil) from inside a building to the main earthing terminal of the electrical installation.

Can you bond without grounding?

Bonding is simply the act of mechanically connecting two or more conductive materials together to establish a conductive path between them. It is possible to “bond” components together without ever grounding them.

What is the purpose of bonding and grounding?

The purpose of grounding is to: Drain transient voltages (such as caused by lightning or fallen power lines) out of the system. Ensure, in conjunction with bonding, that normally non current-carrying conductive objects remain at ground potential.

Earthing,Bonding & grounding

What is the difference between grounded and grounding?

A grounded wire is required by the National Electrical Code to be white or gray in color on the customer side of the meter. Grounded wires on the utility side of the system do not generally have insulation. A "grounding" wire on the other hand is a safety wire that has intentionally been connected to earth.

What needs earth bonding in a house?

Why do I need protective bonding? If you have metal water and gas pipes coming into your home – these are typically found in older homes. Protective bonding is an essential requirement of every electrical installation, however it is often overlooked by an unqualified person attempting electrical work themselves.

Why do we bond neutral to ground?

To provide the low impedance path necessary to clear a ground-fault from the separately derived system, the metal parts of electrical equipment shall be bonded to the grounded (neutral) terminal (Xo) of the derived system.

What are the advantages of proper bonding and grounding?

The benefits of proper bonding include clearing faults, preventing shock and reducing fires. Grounding provides a low-impedance path for lightning. Properly grounded systems operate as intended. Improperly grounded systems create a fertile ground for power quality problems.

How do you test for bonding and grounding?

Ground Bond Test

Ground bond testing requires application of a high current source to a conductive surface of the product and measurement of the voltage drop across the ground connection. This is to determine that bonding is adequate and that the circuit can carry the specified current safely.

What is TN and TT system?

1) TT: transformer neutral earthed and frame earthed. 2) TN: transformer neutral earthed, frame connected to neutral. 3) IT: unearthed transformer neutral, earthed frame.

What's the difference between TNS and TNCS?

The major difference between these two methods of earthing is that you have a separate earth core back to the substation in a TNS whereas in a TNCS the earth and neutral are the same core (CNE).

Where do you connect earth bonding?

Main Bonding (Earthing)

Connections are made on the metal pipes near the point at which they enter your home, i.e. The Main Bonding for the water is normally connected within 600mm of your Water Stop Tap. Main Bonding is there to protect you.

What are the 5 earthing systems?

BS 7671 lists five types of earthing system: TN-S, TN-C-S, TT, TN-C, and IT. T = Earth (from the French word Terre) N = Neutral S = Separate C = Combined I = Isolated (The source of an IT system is either connected to earth through a deliberately introduced earthing impedance or is isolated from Earth.

What do grounding and bonding prevent?

Bonding and grounding provide the most effective means of preventing the buildup of static charges that can cause sparking of sufficient magnitude to ignite the atmosphere in a hazardous location.

What is purpose of grounding?

One of the most important reasons for grounding electrical currents is that it protects your appliances, your home and everyone in it from surges in electricity. If lightning was to strike or the power was to surge at your place for whatever reason, this produces dangerously high voltages of electricity in your system.

Is there voltage between neutral and ground?

If a neutral-to-ground connection were made at the receptacle in violation of the NEC, the voltage difference between the grounding contacts of the receptacle to the neutral conductor would be 0 volts. Author's Comment: At service equipment, the voltage between the neutral-to-ground will always be 0 volts.

What happens if the neutral is not bonded?

If the ground is not bonded to neutral, then the entire ground circuit in the building becomes close to hot until the circuit breaker trips. Ground rods can have several ohms of resistance to ground, which is far too high to keep the ground to safe Voltage in such a situation.

Can I connect neutral and ground together?

No, the neutral and ground should never be wired together. This is wrong, and potentially dangerous. When you plug in something in the outlet, the neutral will be live, as it closes the circuit. If the ground is wired to the neutral, the ground of the applicance will also be live.

What happens if neutral is not grounded?

Grounding neutral provides a common reference for all things plugged into the power system. That makes connections between devices safe(r). 2. Without a ground, static electricity will build up to the point where arcing will occur in the switchgear causing significant loss in transmitted power, overheating, fires etc.

What is the difference between grounded and bonded?

Bonding is the connection of non-current-carrying conductive elements like enclosures and structures. Grounding is the attachment of bonded systems to the earth. Both are necessary to safeguard people and property from electric hazards.

Is bonding required?

Rather, bonding is required because experience has shown that when people are entrusted with the money or property of another, there will be instances when individuals will cause a loss through fraud or dishonesty. Bonding is therefore required to insure the union against such a loss.

Do copper pipes need to be grounded?

Answer: Most electrical codes require a home's electrical system to be grounded through the copper or galvanized-iron water supply pipes that lead from the water main to your faucets. This is done by clamping the ground wire from the panel to a pipe.

What is the difference between earthing and grounding and neutral?

Besides this, earthing provides you with a low resistance path, so that the extra current directly travels down to the ground. The neutral wire is used for providing a return path for the flow of current in an AC circuit. The neutral wire carries no current, yet without neutral wire the AC circuit is incomplete.
