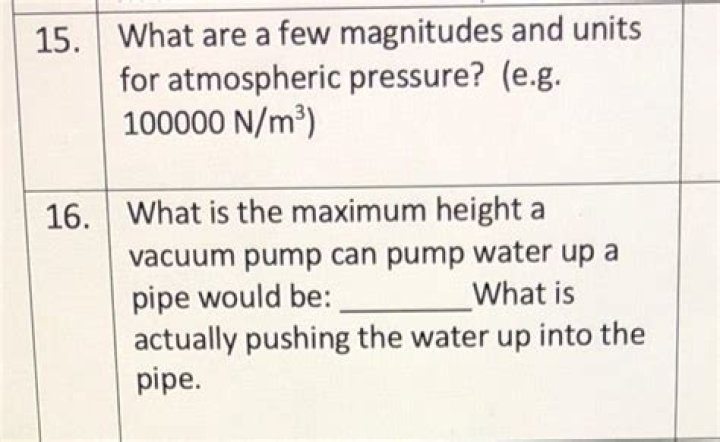

What is the maximum height a vacuum pump can pump water up a pipe would be?

The atmospheric pressure would be capable of sustaining a column of water 33.9 feet in height. If a pump could produce a perfect vacuum, the maximum height to which it could lift water at sea level would be 33.9 feet, as shown in Example 1.

How deep can a vacuum pump work?

Therefore, a total vacuum could only pump water from a depth of just under 34 feet or 10.3 meters. Actually, a total vacuum cannot be created over water. As the pressure is reduced, the boiling point of the water is lowered, producing a layer of water vapor between the water's surface and the pump.

How far can a pump pull water vertically?

Different well pumps can push water different distances. For example, a well pump with a single line tends to push water a maximum of 25 feet vertically. Comparatively, shallow well pumps can push water 30 feet vertically.

How high can a 1hp pump lift water?

Specifications - head - 3 to 32 meters capacity - 3100 to 500 LPH power rating - 1 HP. Special motor design can work on ups it is capable of priming up to 3 meters static suction lift without a foot valve, at rated head and discharge b class of insulation.

What is the maximum height that a pump can move fluid against gravity?

So, what is pumping head or just “head?” Head is the maximum height that a pump can move fluid against gravity. The purest example of this is if you have a vertical pipe extending straight up from the discharge outlet. A pump with 5m of head will pump fluid up the pipe 5m from the discharge outlet.

Maximum Suction Lift or Maximum Suction Height For Pump

How high can you draft water?

The maximum height to which water can be drafted is nearer 20 to 25 feet, as opposed to the theoretical lift of 33.8 feet. DEPENDABLE LIFT: Taking into consideration the surrounding atmospheric pressure and friction loss in the intake hose, every fire pump in good repair should be able to lift water at least 15 feet.

What is lift height water pump?

Water pump that meets the requirement of pump lift

The water pump lift is about 1.15~1.20 times of the water lifting height. For an instance, if the vertical height from the water source to water tank is 20 meters, the lift of the water pump needed is about 23~24 meters.

Which water pump is best for 60 feet height?

Very strong aluminum body and sturdy motor. Capable for lifting 60 feet height and pull 15 feet depth. Its suction and delivery are 1″ x 1″. So, overall, Lakshmi 0.5 HP Mono Block Water Pump is a nice energy saver.

How high can a 0.5 HP pump lift water?

Pump: Their pumps are 10 stage pumps with their 0.5HP water pump capacity of water-lifting is up to 215 feet. Suitability: They are suitable for a minimum of 4-inch borewells to 300 feet deep ones.

How many inches of water is a perfect vacuum?

30″Hg is regarded as the maximum vacuum level available at sea level, and because the oceans are the same height across the planet, this is a good datum point for reference. This number is actually rounded up from 29.92″Hg.

How deep can a 1/2 HP well pump go?

A two-line jet pump can typically raise water from depths of 30 feet to 80 feet, and at water delivery rates of 4 gpm (for a 1/2 hp 2-line jet pump serving an 80 foot deep well) to 16 gpm (for a 1 hp 2-line jet pump serving a 30 foot deep well).

How far will a 1/2 HP sump pump push water?

A 1/2 HP sump pump can handle 7 to 10 feet vertical lift off the sump pump, a 90-degree elbow and a horizontal pipe running between 3 and 25 feet.

How high can a centrifugal pump lift water?

Theoretically, all centrifugal pumps can lift water not more than 10.33 m at sea level. If the liquid is below the pump datum, the vertical distance between the pump impeller and the surface of the liquid on the suction side of the pump is referred to as the suction lift.

Which water pump is best for 300 feet height?

Jaisinghani 1 HP Submersible Water Pump 15 Stage V-4 80-300 Feet Head for Home Submersible Water Pump (1 hp)

• Single-phase Water Pump.
• In-built Thermal Over Load Protector.
• Power Rating: 0.75 kW.
• Power Supply: 221 V - 240 V.
• Motor Power: 1 hp.

What is a high flow water pump?

Our range of high flow pumps are designed to be efficient and are capable of continuous duty. They are ideal in applications such as water supply, irrigation, pressure boosting, feeding cleaning sets or firefighting sets, water circulation in air-conditioning units.

How do you size a water pump?

Use the pump flowrate calculation: Divide the container volume by the length of time it took to fill up to get the flow rate. 5 gallons / 1 minute = 5 gallons per minute. 5 gallons /30 seconds (0.5 minutes) = 10 gallons per minute.

How do you calculate pump height?

The head is usually the maximum height that the pump can lift, and is indicated by H. The most commonly used pump head calculation formula is H = (p2-p1) / ρg + (c2-c1) / 2g + z2-z1.

How deep can you pump water?

The shallow well jet pumps draw water from one line situated in wells no deeper than a maximum of 25 feet deep. Deep well jet pumps use two lines, one for pulling the water, and one for pushing the water into the delivery system. Deep well jet pumps can pump water from wells that range from 25 to 110 feet deep.

What is the maximum suction head for water pump?

The maximum theoretical suction height of the water, at sea level, is about 10.33 meters. in practice we consider the NPSH of the pump and the pressure losses due to fluid flow. The practical maximum suction height is located around 7 meters at ambient temperature.

Can a pump pull water uphill?

Water pumps are powerful devices capable of working hard to pump water, even when going uphill and against gravity.

How deep can a hand pump lift water?

Hand pumps are capable of lifting relatively small amounts of water from depths of up to 100 metres.

Which pump is successfully used for lifting water from deep wells?

Air Lift Pump: An airlift pump is a device used to lift water from a deep well or sump by utilizing the compressed air.
