Space the fasteners a maximum of 16” (406mm) apart for horizontal siding panels, every 12” (305mm) for vertical siding panels, and every 8” to 12” (203mm to 305mm) for accessories. These distances may be increased if the manufacturer permits greater spacing based on wind load testing.When nailing vinyl siding nails should be?
The minimum nail size should be 1-1/2". Example: If you're applying siding over 1/2" structural sheathing, use a nail at least 1-1/2" long (1/2" sheathing + 3/4" stud penetration + nailing hem thickness + minimum 1/16" between nailing hem and fastener head).
How far apart should vinyl siding joints be?
Plan overlaps where they'll be the least visible, and stagger joints at least 2 feet from course to course, which will add to the siding's stability.

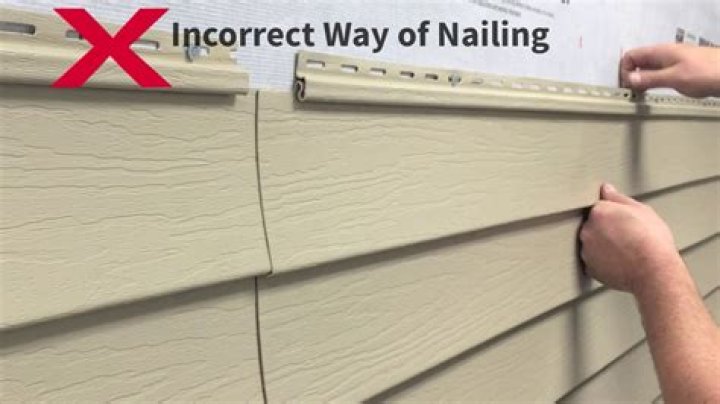

What happens if you nail vinyl siding too tight?
Nailing Siding Too Tightly: Vinyl siding will expand and contract with temperature changes. If the contractor nails the siding too tightly, it will restrict the movement and the siding is likely to crack. As a general rule, contractors should use a clearance of 1/32 inch between the siding and nail head.
How tight should you nail vinyl siding?
Do not nail any siding parts too tight. Leave 1/32 inch between the nail head and the vinyl. Vinyl siding must be attached “loosely.” Center nails in slots to permit expansion and contraction of the siding.
How to Install Vinyl Siding from A to Z
How long should siding nails be?
Most contractors agree that nails used in siding projects should measure at least 1 ½ inches long—or up to 2 ½ inches if you're installing backerboard with the siding.
What's the best nails to use for vinyl siding?
What kind of nails do you use to hang vinyl siding? Use electro, or hot-dipped galvanized steel or aluminum roofing type nails with a diameter of 1/8″ and a nail head of 3/8″ or larger. The nails should penetrate 3/4″ into a solid wood base.
What kind of nailer do you use for vinyl siding?
What Kind of Nail Gun Do You Use for Siding? While you can use roofing nail guns for siding, it is ideal to use a pneumatic siding nail gun to secure vinyl, wood, and cement siding. You should set the pressure of the nail gun to the density of the material you are using. We do not recommend using a brad gun.
What is the most common mistake when installing vinyl siding?
Avoid mistakes when installing vinyl siding
- Nailing the vinyl siding on too tightly.
- Leaving too much space between fasteners.
- Too much overlap in panels.
- Creating visible seams.
- Skimping on flashing.
How far apart should furring strips be for siding?
Furring strips should be spaced 16" on center. Install sheathing according to manufacturer's instructions. Do not apply siding directly to furring strips. For best thermal performance, install a minimum of 1/4" foam over furring strips.
Should siding seams be staggered?
Stagger the siding end laps so that no two courses (rows of panels) are aligned vertically, unless separated by at least three courses. Always overlap joints away from entrances and/or away from the point of greatest traffic. This will improve the overall appearance of the installation (Fig. 37).
What is the best fastener for vinyl siding?
When installing vinyl siding, use a galvanized nail, stainless steel nail, or aluminum nail; something that won't rust. Roofing nails with a 3/8″ diameter head work well with vinyl siding.
Can you use a roofing nailer for siding?
Roofing nails are acceptable for fastening shingle panels together, but it is not advised. Siding nails will probably bow out at the tip when you begin nailing with them because they are thinner than what's used for installing shingles or sheathing on a home's exterior.
How many nails do I need for vinyl siding?
It's best to estimate the square footage of the vinyl siding to determine approximately how many nails you need. You'll also want to consider the space for the nails. On average, you'll need to install about 115 nails per square [or 100 square feet].
Do i need foam board under vinyl siding?
By installing insulation on the outside of the framing it causes the location of the dew point to move to the outside of the wall assembly. This reduces the likelihood of condensation within the wall cavity. The exterior insulation also helps keep the siding (all vinyl siding leaks!)
Do siding nails have to go into studs?
Next, there's insulation material between the studs to keep the house warm. Many homes have a layer of sheathing added over that. The siding must nail through this into the studs to ensure proper attachment.
Can I use framing nailer for siding?
The answer is, yes. Framing nail guns can be used for siding installation, if the nail being used is long enough to attach the siding firmly to your exterior wood sheathing. While it's recommended to always use a siding nail gun for siding installation, in a pinch, you may be able to use a framing nailer instead.
Why do nails pop out of siding?
There are a few reasons why nails pop out of siding: Expansion and contraction of the wood; The nails are not ring-shanked or long enough; The nails are not in the studs.
Can you put nails in vinyl siding?
To make your home more beautiful or to celebrate different holidays or seasons, you may want to hang decorations on the side of your house. This can be tricky with a vinyl-sided house because you shouldn't drill or nail through the siding. Holes can cause water to seep behind the vinyl, creating problems for your home.
