What kind of ductwork is best?

Flexible ductwork is the best type of ductwork to use in tight or awkward spaces where rigid ductwork would be too difficult to install. Because these air ducts are flexible, they can bend around fixed structures to work in almost any space.

What is the most efficient ductwork?

For instance, round duct is the more efficient shape in terms of material use, resistance to airflow, and air leakage. “The tradeoff is that round duct will not always fit in the space provided. In these cases the duct is converted to rectangular or flat-oval so that it can fit the available space.

What type of ductwork is best?

Though there are different types of ductwork available in the market today, Sheet metal is most recommended as this type of air duct is non-porous in nature and thus does not allow mold or bacteria to breed in the air ducts. Sheet metal ductwork also helps you prevent potential health risks of fiberglass air ducts.

What is the most durable material in ductwork?

Sheet metal

The thick, solid wall makes the duct very durable. The interior is known to trap dust and other particles, but the smooth surface is generally easy to clean. So if you go with sheet metal in your home, it's a good idea to get your ducts professional cleaned now than then to maintain proper air quality.

Is flex duct better than hard duct?

Flex ducts are better for existing trunk-and-branch heating and cooling systems. This is because they're more versatile and flexible. Metal ducts are more rigid due to the nature of steel, making them ideal to build an entire HVAC system.

Flex vs. Rigid Metal AC Duct - My preference may surprise you!

What is the disadvantage of flex duct?

The downside of flex ducting is that it is considered temporary with an acknowledged lifespan of only about 15 years. Another major disadvantage is that they are a little too flexible, so they are often incorrectly installed. And with greater friction than metal ducts, proper sizing is critical.

How long will flex duct last?

What is the functional lifespan of a flexible duct system? A search of industry articles, blogs, and chat rooms indicates it lasts from 10 to 25 years. Most flexible duct manufacturers warranty their products for about 10 years.

Should I replace fiberglass ductwork?

The problem with old fiberboard duct is that the fiberglass particles come loose and circulate through the house. These particles are inhaled by people in the home (or office), which is hazardous to everyone's health. When this occurs, the ductwork should either be replaced or reinsulated with safer material.

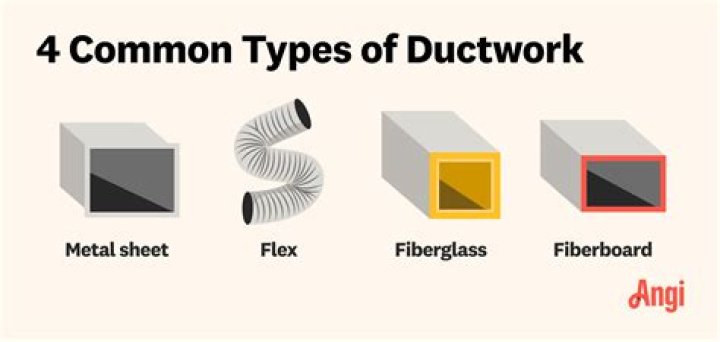

What are the 4 types of duct systems?

Namely, flexible ductwork, rigid ductwork, and semi-rigid ductwork. We've compiled information on each of these duct systems. These ducts are typically tube-shaped and made of a wire coil covered with a bendable, durable plastic, and surrounded by insulation.

Is fiberglass ductwork safe?

Fiberglass, at a minimum, is an acute physical irritant to the skin, eyes, and upper respiratory tract. While no long-term health effects should occur from touching fiberglass.

Is insulated ducting better?

Ductwork insulation ensures that air traveling through the duct system will stay at the desired temperature and won't "leak" out. Leaking air results in unnecessary energy loss, which means that your HVAC system will have to work even harder.

Should you replace old ductwork?

“If your ductwork is over 15 years old, you probably should replace it. Ductwork has a maximum lifespan of 20-25 years. By 15 years, however, it begins to deteriorate, significantly reducing your HVAC system's efficiency, so replacement is the prudent option.”

Does Flex duct reduce airflow?

If you've ever seen kinked or sagging flex duct and wondered whether that was a problem, you were onto something! Since flex duct, by definition, is flexible, it often flexes in ways we don't want it to. The result is poor airflow and ineffective HVAC systems.

Is round ductwork better than rectangular?

In many ways, round metal duct work is more economical than rectangular metal duct work as a means of conveying air. 1) Size: For a given pressure loss, the surface area of rectangular duct can be double the comparable round duct surface area. Round duct, therefore, requires less metal than rectangular equivalents.

What is the most energy efficient shape of duct?

Round. Round ducts are the most efficient in transporting air. They use less material than rectangular ducts to handle the same amount of air.

What size air duct do I need?

To calculate the required equipment size, divide the HVAC load for the entire building by 12,000. One ton equals 12,000 BTUs, so if a house or office needs 24,000 BTUs, it will take a 2-ton HVAC unit. If you get an uneven number, such as 2.33 for a 28,000 BTU load capacity, round up to a 2.5-ton unit.

What are different type of ducts normally used in HVAC?

There are three main types of rigid ductwork: sheet metal ducts, fiberglass lined ducts, and fiberboard ducts.

What gauge is most ductwork?

Gage-It Right

The thinnest acceptable sheet metal for ductwork used in a single dwelling is 28 gage or 0.013 and 0.018 inches for galvanized and aluminum, respectively. This measurement is for around duct smaller than 12 inches in diameter and a rectangular section no bigger than 8 inches.

What is black iron ductwork?

Black Iron Grease duct is fabricated to safely transfer contaminated air, grease vapors, and heat. In a commercial kitchen, grease is heated to its vaporization point. Vapors then cool, condense and settle on colder surfaces. This produces a highly flammable hydrocarbon which can be very dangerous.

How long does fiberglass ductwork last?

Ducts are designed to last for about 10-15 years on average. They are made from a combination of materials such as fiberglass and plastic. At some point, these ducts will get damaged. The sooner you see signs of damage and do something about it, the better.

What can I do with old ductwork?

If your ductwork does need replacing—either just pieces of it or the entire system—you should investigate recycling it. Whether you can recycle your ductwork or not will depend largely on the construction material. Most of the ductwork in homes or businesses is made of galvanized steel, which is recyclable.

How do I know if I need new ductwork?

The best way to know if your air ducts need replaced is through a duct blower test. An HVAC technician will install pressure sensors in your home's air ducts, then use a blower fan to pressurize the ducts. An air flow sensor in the blower calculates how much air is required to maintain the pressure.

How do I know what size flex ducts I need?

Measure the length and width of the room where the flex duct will be supplying the air. Multiply the length and width together to get the square footage of the room. For example, a 10-by-10 room will be 100 square feet.

When should ductwork be replaced?

The ductwork in most homes lasts between 10 and 15 years before problems arise. If your ducts are more than 15 years old, have them replaced before major issues such as pests, gaps, or even collapsed sections of ducts appear.

How often should flex duct be supported?

Supports should be installed at least every once 4 feet. The maximum allowable sag in flexible duct is one-half inch per foot. (Source: Calcs Plus.) Place supports at each connection between flex duct and rigid metal duct.
