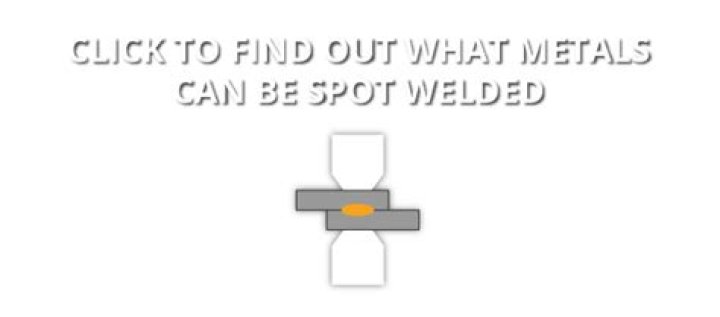

What metals can be spot welded?

Other materials commonly spot welded include stainless steels (in particular austenitic and ferritic grades), nickel alloys and titanium. Although aluminium has a thermal conductivity and electrical resistance close to that of copper, the melting point for aluminium is lower, which means welding is possible.

What metals Cannot be spot welded?

Most of the common metals may be readily spot welded. Principal exceptions are silver, copper, lead and zinc.

What is the most common spot welded metal?

Steel is the preferred metal for spot welding, but the process also works well with wire mesh. Low-carbon steel works better than high-carbon steel. Nickel alloys, titanium and wire mesh also work well with spot welding.

Can you spot weld different metals?

The entire spot welding process can be modified by applying different pressure, electrical input, and current durations. These modifications allow you to weld different metal types, thicknesses, and achieve different spot welding results.

How thick of metal can you spot weld?

Spot welding is primarily used for joining parts that are normally up to 3 mm in thickness. Thickness of the parts to be welded should be equal or the ratio of thickness should be less than 3:1. The strength of the joint depends on the number and size of the welds. Spot-weld diameters range from 3 mm to 12.5 mm.

HOW TO SPOT WELD DIFFERENT THICKNESSES AND MATERIALS?

Can you spot weld aluminum?

Spot welding uses two opposing electrode pincers to compress and fuse pieces of metal together, using an electrical current to create intense heat to form a weld. The process is inexpensive, fast and reliable, but until now, not robust for use on aluminum in today's manufacturing environment.

Can you spot weld stainless steel?

Spot welding is a popular way of joining two sheets of thin metal, such as stainless steel. The sheets are placed between the two welding electrodes, to which pressure is applied.

Can brass be spot welded?

Brass is a soft metal used in air conditioning piping, jewelry and musical instruments. If have a broken piece of brass, you can spot weld it with a tungsten inert gas welder. Because of its low melting point, you should be able to weld the brass together within a couple of seconds.

Are spot welds strong?

Spot welding is useful in many circumstances, although there are certain limitations. It can create only localized joins, which may not be particularly strong. The strength of a spot weld depends on the force and temperature that has been applied and on the cleanliness of the electrodes and metal.

Can you spot weld tin?

Use a soldering iron to connect tin cans together rather than welding. Welding a tin can is not possible, but brazing it together will work. A tin can is either made from aluminum or steel with a tin coating (plating) on the outside. The metal is very thin and does not withstand the heat from welding.

What makes a good spot weld?

Materials Appropriate for Spot Welding

Due to its lower thermal conductivity and higher electrical resistance, steel is comparatively easy to spot weld, with low carbon steel being most suited to spot welding.

Can all steel be welded?

The main parameters that determine a metal's weldability include the electrode material, cooling rate, shielding gases, and welding speed. Every metal is unique. To a certain extent, all metals can be welded, but there are clear advantages and disadvantages to each.

Can you weld silver?

Silver soldering is the process of permanently joining two pieces of metal together using heat to melt pieces of silver solder to fill a prepared joint. It is used essentially with silver for jewellery making and silversmithing, but can also be used to join together copper, gilding metal, brass and gold if needs be.

Can copper be resistance welded?

Copper is a very conductive material and therefore may require one to use modified procedures from the ordinary. It can be resistance welded to similar materials. There is so much difference in the conductivity between copper and steel that this would be considered a difficult weld to make.

How do you spot weld copper?

How to Spot Weld Copper

1. Apply brazing paste in between the two points to which you will apply the electrodes of the spot welder.
2. Lower the electrodes of your spot welder and pinch the two pieces of copper you will spot weld.

Can wires be spot welded?

Most of the time, spot welding is used when a single layer of wire mesh needs to be joined to itself. This type of welding can be seen in our sock screen gaskets, which are spot welded at the overlapping seam in order to retain its cylinder-like seam.

How many amps does a spot welder use?

Welding current and time are used to bring the metal to welding temperature (2550 Degree F.). Weld Temperature = i² x t x R. Welding current in a body shop environment has a range of 3000 to 5000 amperes.

Can a spot welder shock you?

Can I get electrocuted by touching the weld cables or electrodes? – Luckily, No. For all concerned, the voltage for all resistance welding technologies is below the level where there would be a concern about electric shock. This includes CD, AC, DC, and HF models.

Can gold be spot welded?

- Sparkle spot welder can be used to weld alloys of precious metal existing of gold, silver, platinum and high-grade steel.

Can you weld bronze to steel?

A pad of bronzes is welded to the steel part and then machined back to the required shape. This provides excellent adhesion of the bronze to the steel and is much more robust and impact-resistant compared with brazing processes.

Can you weld brass to stainless steel?

SSF-6 Silver Solder is a high strength, flux-coated stainless steel brazing rod that can be used to bond many metals: copper, brass, cast iron, stainless, bronze, gold, silver and more.

Can 304 stainless steel be spot welded?

An increase in weld current, weld time and electrode force results in an increase in electrode indentation. J.B. Shamsul and M.M. Hisyam [4] , "Study of Spot Welding of Austenitic Stainless Steel Type 304", concluded experimental study of austenitic stainless steel type 304 was welded by resistance spot welding.

Is it easy to spot weld?

Spot welding uses the heat from an electrical current to join 2 pieces of metal quickly, and is typically used for joining sheet metal. It's also easy to do with a spot welding machine, which has 2 electrode tongs about 6 inches (15 cm) long that pass an electrical current through the metal to fuse them together.

Which type of stainless steel is weldable?

In general, ferritic stainless steels are the most readily weldable stainless steel. While ferritic grades still have chromium and other alloying elements, the reduced amount of these elements compared to austenitic stainless steel make ferritic stainless steels more weldable.
