Which is the first microcontroller? Explanation: TMS1000 is the first microcontroller which was done in April 1971 but Intel 4004 was designed in November 1971.Which is the 1st microcontroller?
A microcontroller was developed in 1971 by Intel Corporation in the United States. That is the 4 bit microcontroller called i4004. It was ordered by a Japanese company BUSICOM for calculators.

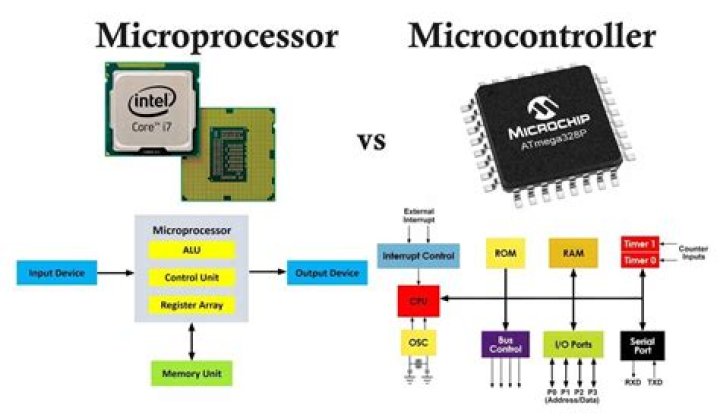

Which came first microcontroller or microprocessor?
It was during 1970 and 1971 when Intel was working on inventing the world's first microprocessor, that Gary Boone of Texas Instruments was working on quite a similar concept and invented the microcontroller.
Who invented the 8051 microcontroller?
The Intel MCS-51 (commonly termed 8051, typically pronounced eight-oh-five-one) is a single chip microcontroller (MCU) series developed by Intel in 1980 for use in embedded systems. The architect of the Intel MCS-51 instruction set was John H. Wharton.
How was the first microcontroller programmed?
The Z3, the first programmable processor was built out of electromechanical relays and read instructions from punched film. The Altair 8800, the first personal computer, was programmed by toggling switches.
EEVblog #1111 - World's First Microcontroller & Electronic Game
Is an Arduino a microcontroller?
Arduino consists of both a physical programmable circuit board (often referred to as a microcontroller) and a piece of software, or IDE (Integrated Development Environment) that runs on your computer, used to write and upload computer code to the physical board.
What are the types of microcontroller?
Different types of Microcontroller Programming used in Embedded Systems
- Advantages. A microcontroller is a cheap and minimal size, easy to carry out. ...
- PIC Microcontroller. ...
- ARM Microcontroller. ...
- 8051 Microcontroller. ...
- AVR Microcontroller. ...
- MSP Microcontroller.
Why microcontroller is called 8051?
What is microcontroller? Term 8051 refers to MCS 51 family of microcontroller ICs introduced by intel corporation in 1971.
Why 8051 is called microcontroller?
Brief History of 8051
In 1981, Intel introduced an 8-bit microcontroller called the 8051. It was referred as system on a chip because it had 128 bytes of RAM, 4K byte of on-chip ROM, two timers, one serial port, and 4 ports (8-bit wide), all on a single chip.
Is 8051 a microcontroller or microprocessor?
8051 microcontroller is designed by Intel in 1981. It is an 8-bit microcontroller. It is built with 40 pins DIP (dual inline package), 4kb of ROM storage and 128 bytes of RAM storage, 2 16-bit timers. It consists of are four parallel 8-bit ports, which are programmable as well as addressable as per the requirement.
What is the latest microcontroller?
10 Best Microcontrollers on the Market for 2021
- 1: Groboards Giant Board.
- 2: Seeeduino XIAO.
- 3: The BBC micro:bit V2.
- 4: Adafruit Gemma M0.
- 5: Arduino Uno Rev3.
- 6: Adafruit Industries ESP8285.
- 7: MPLAB PICkit 4 In-Circuit Debugger.
What is microcontroller example?
For example, Intel 8031 and 8051 are 8 bits microcontroller. 16-bit microcontroller − This type of microcontroller is used to perform arithmetic and logical operations where higher accuracy and performance is required. For example, Intel 8096 is a 16-bit microcontroller.
Is Raspberry Pi a microcontroller?
In short, Raspberry Pi is known for its line of microprocessors, and not for microcontrollers. But this time around, the company has developed their very own microcontroller for the makers, and has designed a development board to bring it to them - The raspberry Pi Pico!
What is MCU in microcontroller?
It's an acronym for the microcontroller unit. In an embedded system, the MCU is the core component that makes up the circuit.
What are the 8-bit microcontroller?
The term “8-bit” generally refers to the bit-width of the CPU. Thus an 8-bit microcontroller is one which contains an 8-bit CPU. This means that internal operations are done on 8-bit numbers, that stored variables are in 8-bit blocks, and external I/O (inputs/outputs) is accessed via 8-bit busses.
Why is it called 8-bit microcontroller?
But, why is the 8051 called an 8-bit microcontroller? The 8051 is called an 8-bit microcontroller because it processes 8 bits of data every machine cycle. All assembly instructions happen 8-bits at a time. Also, all internal registers are 8-bit in size and all read and write operations happen 8-bits at a time.
Where is 8051 used?
Home Applications (TVs, VCR, Video Games, Camcorder, Music Instruments, Home Security Systems, Garage Door Openers, etc.) Communication Systems (Mobile Phones, Intercoms, Answering Machines, Paging Devices, etc.) Office (Fax Machines, Printers, Copiers, Laser Printers, etc.)
What is bus in microcontroller?
Buses. A bus is a high-speed internal connection. Buses are used to send control signals and data between the processor and other components. Three types of bus are used. Address bus - carries memory addresses from the processor to other components such as primary storage and input/output devices.
How many timer is 8051?
The 8051 has two timers, Timer 0 and Timer 1. They can be used as timers or as event counters. Both Timer 0 and Timer 1 are 16-bit wide.
What is 16bit microcontroller?
A 16 bit microcontroller is a self-contained system that includes memory, a processor and peripherals that can easily be embedded to any system to enable smooth operation. Future Electronics has a broad inventory of 16-bit general purpose microcontrollers.
How many microcontrollers are there?
A typical mid-range automobile has about 30 microcontrollers. They can also be found in many electrical devices such as washing machines, microwave ovens, and telephones.
What year were microcontrollers first used?
A microcontroller was developed in 1971 by Intel Corporation in the United States. That is the 4 bit microcontroller called i4004. It was ordered by a Japanese company BUSICOM for calculators. Later, the contract was changed and it was sold as a general-purpose microcontroller with success.
What is ATmega328 microcontroller?
The ATmega328 is a single-chip microcontroller created by Atmel in the megaAVR family (later Microchip Technology acquired Atmel in 2016). It has a modified Harvard architecture 8-bit RISC processor core.
