Why do single flutes have end mills?

The answer is we space out more cutting edges (flutes) around the circumference of the cutter so that as the cutter is spinning, we get a lot more bites (chips) of the material.

What are single flute end mills used for?

For applications requiring fast, high-volume material removal, the single flute design is ideal. Our single flute tools are highly versatile – excelling at roughing. These tools are perfect for aluminum, brass, plastics, exotic composites and any soft metals.

Why are there milling cutters with flutes?

Flutes: More flutes allows a higher feed rate, because there is less material removed per flute. But because the core diameter increases, there is less room for swarf, so a balance must be chosen. Coating: Coatings, such as titanium nitride, also increase initial cost but reduce wear and increase tool life.

How many flutes end mill?

Traditionally, end mills came in either a 2 flute or 4 flute option. The widely accepted rule of thumb was to use 2 flutes for machining aluminum and non-ferrous materials, and 4 flutes for machining steel and harder alloys.

What are 3 flute end mills good for?

Three flute end mills are used for higher feed rates than two flute end mills, and are often used in aluminum machining. They are commonly used in grooving operations where the chip is crowded. They are also used in non-ferrous milling applications where high feed rates are used.

How to Decide Which End Mill to Use in Aluminum | A Quick Beginner's Guide to Milling in a Tormach

Can you drill with a 4 flute end mill?

They can mill, and they can drill. (They have cutting edges on the end face and the sides) These are usually the 2 flutes or 3 flute endmills, and occasionally you can find some 4 flutes that are centre cutting as well. Non-centre cutting end mills refers to those that mill, they do not drill.

What is a 2 flute end mill?

Two flute end mills are used for all end mill operations. The flute volume is more with 2 flute mills, but the feed rates are lower. The fewer number of flutes allows for better chip evacuation in grooving operations. These mills come in flute lengths from stub to extra extra long.

What is a 5 flute end mill used for?

End mills with higher counts of 5, 6, and 7 flutes are increasingly being used to cut harder materials, as a higher flute count allows for a tool with more strength and less wear, resulting in a longer tool life.

What are 6 flute end mills used for?

Six flute end mills are used for finishing operations that demand good surface finshes and higher feed rates. The flute volume is much less on 6 flute mills, so they cannot be used to rough mill.

How many flutes does it take to mill wood?

Flutes are the cutting edges you see along the sides of CNC mills and router bits. In the case of the spiral router bits meant for wood cutting, two flutes are most common. CNC mills can have from one to six flutes, though two or four are prevalent.

What is a 4 flute end mill?

Four flute end mills are used for all end mill operations. The flute volume is less on 4 flute mills, but they are the most common number of flutes. The larger number of flutes allows for a faster feed rate. They may not perform as well in grooving operations, because the chips are crowded.

How many flutes are on a tap?

Number of flutes for taps or machine taps

However, it has become generally accepted that hand taps M8 and larger are designed with four flutes. The advantages are obvious: the friction is lower, the chip removal is better and you get a smoother cutting behaviour and thus longer tool life.

How deep can an end mill cut?

With a cut equal to the full width of the cutter, the maximum recommended depth of cut (a_p) is 0.6 D. If, however, the cutting action is the cleaning up of the edge of a component, with the cut only 10 per cent of the diameter, the depth can be increased to 1.5 D. Figure 11.37.

What are tapered end mills used for?

Tapered end mills are used on CNC or manual milling machines for die- and mold-machining applications and for milling channels with a taper angle. Tapered end mills create slots or grooves with tapered walls in a workpiece. They have a conical cutting head that is wider at the base than the tip.

What size end mill should I use?

The length of cut needed for any end mill should be dictated by the longest contact length during an operation. This should be only as long as needed, and no longer. Selecting the shortest tool possible will result in minimized overhang, a more rigid setup, and reduced chatter.

Can I use an end mill in a router?

The disadvantage of an end mill is that the cutting diameter equals the shank diameter. Therefore, I usually mortise with a 1/4″ or 3/8″ end mill using a router collet of the same size for each. A 5/16″ end mill can be used with a shank adapter though I prefer to avoid these adapters.

What is the difference between end milling and face milling?

The difference between end milling and face milling is that an end mill uses both the end and the sides of the cutter, whereas face milling is used for horizontal cutting.

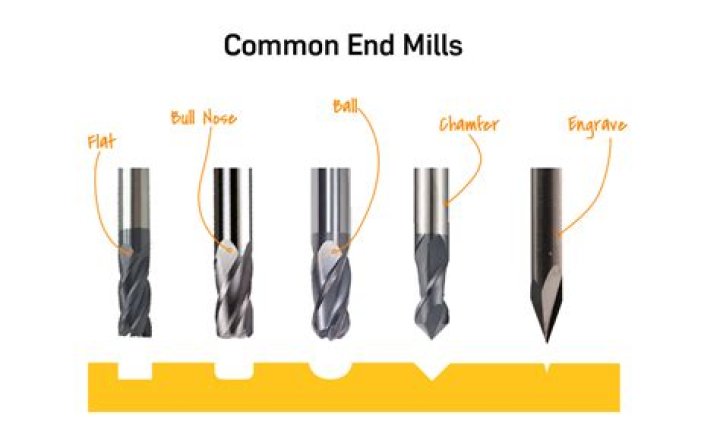

What is a square end mill?

Square end milling cutters are also known as a "flat end mills". The corners of these mills are sharp and generate a 90° angle. They can be single end or double end and they can be made from solid carbide or various compositions of high speed steel.

What is a roughing end mill?

Roughing end mills, also known as hog mills, are used to quickly remove large amounts of material during heavier operations. The tooth design allows for little to no vibration, but leaves a rougher finish. Corner radius end mills have a rounded cutting edge and are used where a specific radius size is required.

What is a bull mill?

Bull end mills are simply corner radius end mill cutters. These radius end mills are single ended tools used for making corner radii at the bottom of a milled shoulder.

What is difference between milling and drilling?

The main difference between Milling vs. Drilling is that drilling is a process of making a hole into a solid surface. While, milling is a process where you create features like slots, walls, fins, webs, etc.
