Why do we need default route?

Default routes tell routers

routers

A route is defined as a pairing between a destination and the attributes of the path to that destination, thus the name, path-vector routing; The routers receive a vector that contains paths to a set of destinations.

› wiki › Routing

and switches where to go to if they don't have a specified route in their routing table.

Should we use default routing?

Explanation: We must use default routing on stub networks. They have only one exit path out of the network, so there can be no specific path decided for such networks.

Where should we use default route?

Default routing is used only in stub networks. Stub are the networks that have only one output interface and everything going through these networks has to cross the single exit point.

Why do we use default information originate?

Using the 'default-information originate' command enables our default routes to be injected in our routing protocol, such as OSPF, and be propagated in our network.

What is the purpose of routes?

Routers carry out two basic functions—they select a path between networks, and they securely transmit information packets across that path toward an intended destination.

What is DEFAULT ROUTE? What does DEFAULT ROUTE mean? DEFAULT ROUTE meaning & explanation

How does default route work?

A default route is the route that takes effect when no other route is available for an IP destination address. If a packet is received on a routing device, the device first checks to see if the IP destination address is on one of the device's local subnets.

What is OSPF default route?

Configures OSPF to advertise the default route (0.0. 0.0/0) to its neighbors, regardless if it is present in the routing table or not. The no form of this command sets the OSPF administrative distance to the default of 110.

Why the default-information originate OSPF?

In OSPF, the “default-information originate” command will not advertise to any other routers without a default route in the routing table. When added the “always” keyword , it tells the router to advertise a default route to other routers even if you don't have a default route in the routing table.

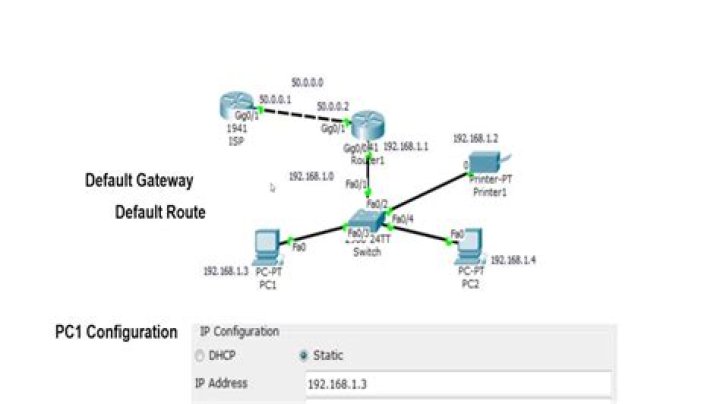

What is difference between default gateway and default route?

The default-route is used on routers, while the default gateway is used on hosts. As an example, consider a simple home router that connects your home network to the Internet. This router will have two routing rules – one for computers on your internal network, and a default route.

What is the purpose of the default route quizlet?

What is the purpose of the default route? It's where the router sends all packets with destination addresses of which it has no knowledge.

What is difference between static route and default route?

Static Routing – This is the method by which an administrator manually adds routes to the routing table of a router. This is a method for small networks but it is not scalable for larger networks. Default Routing – This is the method where all routers are configured to send all packets towards a single router.

What happens if there is no default route?

No Internet Access

Realistically, the lack of a default gateway address means your computer will have no way of getting to the Internet.

What does IP route 0.0 0.0 0.0 0.0 mean?

In the Internet Protocol Version 4, the address 0.0. 0.0 is a non-routable meta-address used to designate an invalid, unknown or non-applicable target. This address is assigned specific meanings in a number of contexts, such as on clients or on servers.

How many default routes can you have?

By default, you can only have one default gateway on a system. The case described would lead to asynchronous routing, whereby the router would reject the packets as appropriate.

Does router need default gateway?

In a home or small office environment, the default gateway is a device, such as a DSL router or cable router, that connects the local network to the Internet. It serves as the default gateway for all network devices.

Is default gateway always a router?

In most homes and small offices, the default gateway is a router that directs traffic from the local network to the cable or DSL modem, which sends it to the internet service provider (ISP).

What is default route configuration?

Default-route has default Administrative Distance value as 1. So according to topology we have configure R1 and R2 with default route as following: R1(config)#ip route 0.0.0.0 0.0.0.0 12.0.0.2. Leaving Administrative Distance value as default value.

What is default route injection?

The default route will be an external EIGRP route. The second method for injecting a default route into EIGRP is to configure a network command with 0.0. 0.0. You must have the static default route configured; otherwise, with network 0.0.

How can default route be generated?

Default routes can also be generated by dynamic routing protocols, such as OSPF and IS-IS. Default routes are used only when no matching routing entry is available for packet forwarding in the routing table. A default route in the routing table is the route to the network 0.0.

What is a default route in Cisco?

The default route is a route that a router uses to forward an incoming packet when no other route is available for that packet in the routing table. Routers use the routing table to make the forwarding decision.

How does OSPF generate default route?

To generate a default route, you use the default-information originate command. This command presents two options: You can advertise 0.0. 0.0 into the OSPF domain, provided the advertising router already has a default route.

Can we redistribute default route in OSPF?

Discussion. Unlike RIP and EIGRP, you cannot create a default route in OSPF by simply redistributing a static route. Even if there is a default route in the routing table, by default Cisco's OSPF implementation will not forward it to the rest of the network.

What is the default priority for OSPF routers?

Default priority for an OSPF interface is 1. The range is from 0 to 255. 0 means that the interface does not involve in the DR election. The following command configures a priority value on an interface.

What is default router in DHCP?

Specifies the IP addresses of the default routers for a client.
