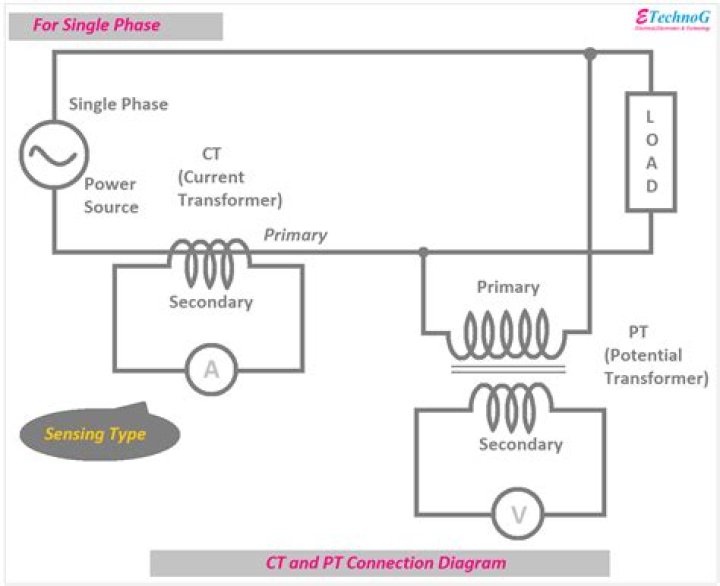

Why we use CT and PT?

A CT lowers the current signals for measurement purposes, while a PT lowers high voltage values into lower ones. The transformers are designed to measure whether power systems are both accurate and safe. In addition, the CT and PT transformer reduces the current and voltage from high to low value.

What is use of PT?

Platinum is used in the chemicals industry as a catalyst for the production of nitric acid, silicone and benzene. It is also used as a catalyst to improve the efficiency of fuel cells. The electronics industry uses platinum for computer hard disks and thermocouples.

Why PT is used in substation?

Voltage transformers (VT), also called potential transformers (PT), are a parallel-connected type of instrument transformer. They are designed to present a negligible load to the supply being measured and have an accurate voltage ratio and phase relationship to enable accurate secondary connected metering.

Why we use PT transformer?

A potential transformer is mainly used to measure high alternating voltage in a power system. Potential transformers are step-down transformers, i.e., they have many turns in the primary winding while the secondary has few turns.

What is CT and PT in energy meter?

A current transformer (CT) is used for measurement of alternating electric current for energy meter. Current transformers, together with voltage (or potential) transformers (VT or PT), are known as instrument transformers.

Current Transformers (CT)

Why is PT connected in parallel?

Why does potential transformer is connected in parallel? Because it is used to measure potential between the lines it is connected to. It's as simple as te working of voltmeter in parallel . It has very high impedance and so draws less current thereby giving you the voltage between the lines.

What is use of CT meter?

Quick Answer. CT (Current Transformer) meters are installed on any connections with a load greater than 100 Amps. They measure a fraction of the amps (current) passing through the connection and a multiplier is applied to this reading to reflect the actual amps.

Why capacitor is used in CVT?

Capacitor Voltage Transformers also serve as coupling capacitors for coupling high-frequency power line carrier signals to the transmission line. CVTs in combination with wave traps are used for filtering high-frequency communication signals from power frequency.

What is ratio error in PT?

The ratio error of the potential transformer is defined as the variation in actual ratio of transformation from nominal ratio. Percentage Ratio Error = (Kn – R) / R × 100. Where. Kn is the nominal or rated transformation ratio and is. Kn = Rated primary voltage / Rated secondary voltage.

What is voltage factor?

Defining the voltage factor

The voltage factor is determined by the maximum operating voltage, which depends on the neutral system and the voltage transformer primary winding earthing conditions. When the voltage transformer is connected between two phases, the voltage factor is 1.2Un continuous.

What are CTs and PTs used for?

They are devices that measure the voltage and frequency in a circuit. Like CTs, PTs are needed because the voltage in a circuit is much higher than the relay can handle, so they step it down to a much lower level for the relay. The switching device opens (turns off) or closes (turns on) the circuit.

Why is PT secondary grounded?

Secondary grounding of current transformers

To prevent the secondary circuits from attaining dangerously high potential to ground, these circuits have to be grounded.

Why is PT primary grounded?

Re: PT Primary Neutral Earthed

The zero sequence component is due to an earth fault hence phase to earth voltage of system having zero sequence component deviate from the normal value.

What is difference between CT and PT?

A CT lowers the current signals for measurement purposes, while a PT lowers high voltage values into lower ones. The transformers are designed to measure whether power systems are both accurate and safe. In addition, the CT and PT transformer reduces the current and voltage from high to low value.

What is CT phase error?

Phase Error or Phase Angle Error in Current Transformer

But for an actual CT there is always a difference in phase between two due to the fact that primary current has to supply the component of the exiting current. The angle between the above two phases in termed as phase angle error in current transformer or CT.

Why is HF point in CVT earthed?

As the frequency of carrier signal is high, the impedance offered by the CVT = 1/wC will be low and the carrier signal travelling on Transmission Line will be bypassed by the CVT, therefore the carrier signal is received or sent through the CVT (HF point is given on the CVT where PLCC is connected through the Fiber ...

What is difference between CVT and PT?

CVT is rated for high voltage levels above 100 kV, while PT's aren't designed for such large values.

What is difference between CCVT and CVT?

A Capacitive Voltage Transformer (CVT) is a CCVT without carrier accessories. The paper will use these terms interchangeably. Even though there is a slight difference between the two, the portion of the device in that pertains to the transient response is the same.

What is burden of CT and PT?

Burden of CT can be specified as Volt-Ampere absorbed at certain Power Factor i.e the VA that can be consumed by the load. The burden can also be expressed as total Impedance in terms of ohms connected on secondary of CT i.e. pilot conductor and instrument burden (I2 x R=VA).

How do you calculate CT ratio?

To calculate the CT ratio, simply divide the primary transformer current by the secondary transformer current.

What is a three phase meter?

What is a 3-Phase electric meter? The 3-phase electric meter is used for measuring the power of three-phase electrical supply, most commonly for commercial use.

Why is PT always open?

Due to low voltage regulation, the secondary terminal voltage will remain constant and hence if we keep the PT terminals open, nothing is going to happen as the secondary voltage is low (110 / 1.732 = 63.5V). Mind that the same is not true for CT. CT secondary terminals should never be kept open.

Why is PT open circuited?

Since, the power (P=VI) in a transformer (input and output) is same, the current rises to a very high level. Thus, a very high resistance is maintained at the secondary terminal to limit the current (which appears as open circuit)... Short circuiting the secondary would burn out the windings.

Why CT secondary is shorted?

The secondary side of the current transformer is always kept short-circuited in order to avoid core saturation and high voltage induction so that the current transformer can be used to measure high values of currents.
